Hot Gas Bypass Valve for Refrigeration, Alco Automatic Expansion Valve, ADRSE-2 ADRS-2 Sporlan Discharge Bypass Valve

FOB Reference Price:Get Latest Price
US $50-60 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Sanrong
Model Number:
ADRE-2
Type:
Hot Gas Bypass Valve
Application:
Refrigeration Parts
Certification:
CE
Refrigerant:
R22, R134a, R404A, R407C, etc.
Conn. Size:
1/2" ODF
Maximum Operating Pressure:
500psig
Adjustment Ranges:
0/30psig, 0/80psig
External Equaliser Conn.:
1/4" ODF
Sporlan Model:
ADRSE-2, ADRS-2
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs/carton
Port
Shanghai, Ningbo
Lead Time :
in stock or 10-25 days

Sanrong Discharge Bypass Valve for refrigeration and air conditioning system

Hot Gas Bypass Valve / Automatic Expansion Valve / Constant Pressure Expansion Valve

ADRE-2 1/2" ODF, substitute for Sporlan ADRSE-2, ADRS-2



PRODUCT DESCRIOTION

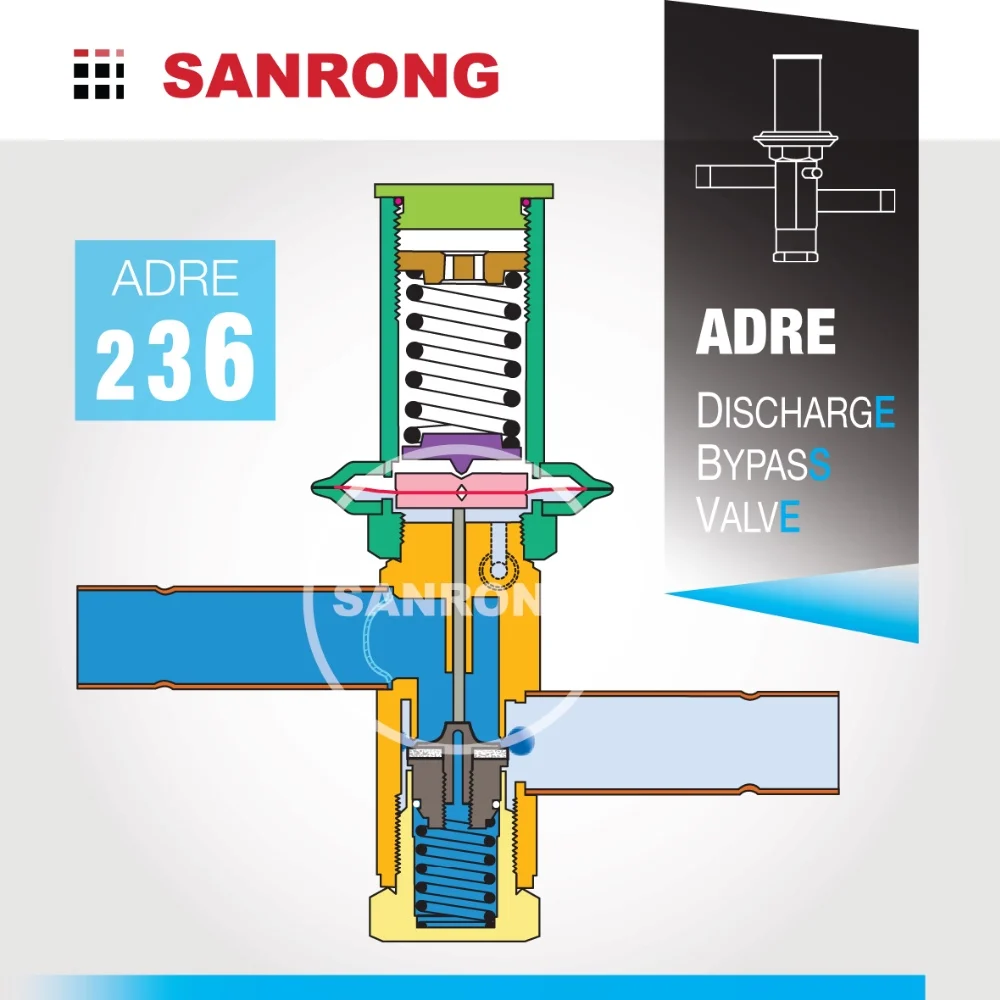

ADRE direct-acting discharge bypass valves are designed to provide an economical method of compressor capacity control in place of cylinder unloaders or to handle unloading requirements below the last step of cylinder unloading. ADRE modulating control valves, which open on a decrease in suction pressure, automatically bypass the required amount of discharge gas to the low side to maintain the desired minimum evaporator pressure regardless of the decrease in evaporator load.



The valves are applicable on any refrigeration or air conditioning system that operates during periods of low load, which can result in coil icing or short cycling. These valves respond to downstream pressure changes and open when the evaporator pressure falls below the valve setting. At normal loads and evaporator conditions, the valve remains closed and the system operates in a conventional manner.

FEATURES
  • Compatible to R22, R134a, R404A, R407C, etc.

  • Fully adjustable element with two adjustment ranges, 0/30 or 0/80 psig

  • Allowable installation in parallel to obtain a larger capacity

  • Standard 1/4” ODF external equalizer connection

  • Maximum operating pressure with 500 psig for all models

  • Flexible for installation in vertical or horizontal lines

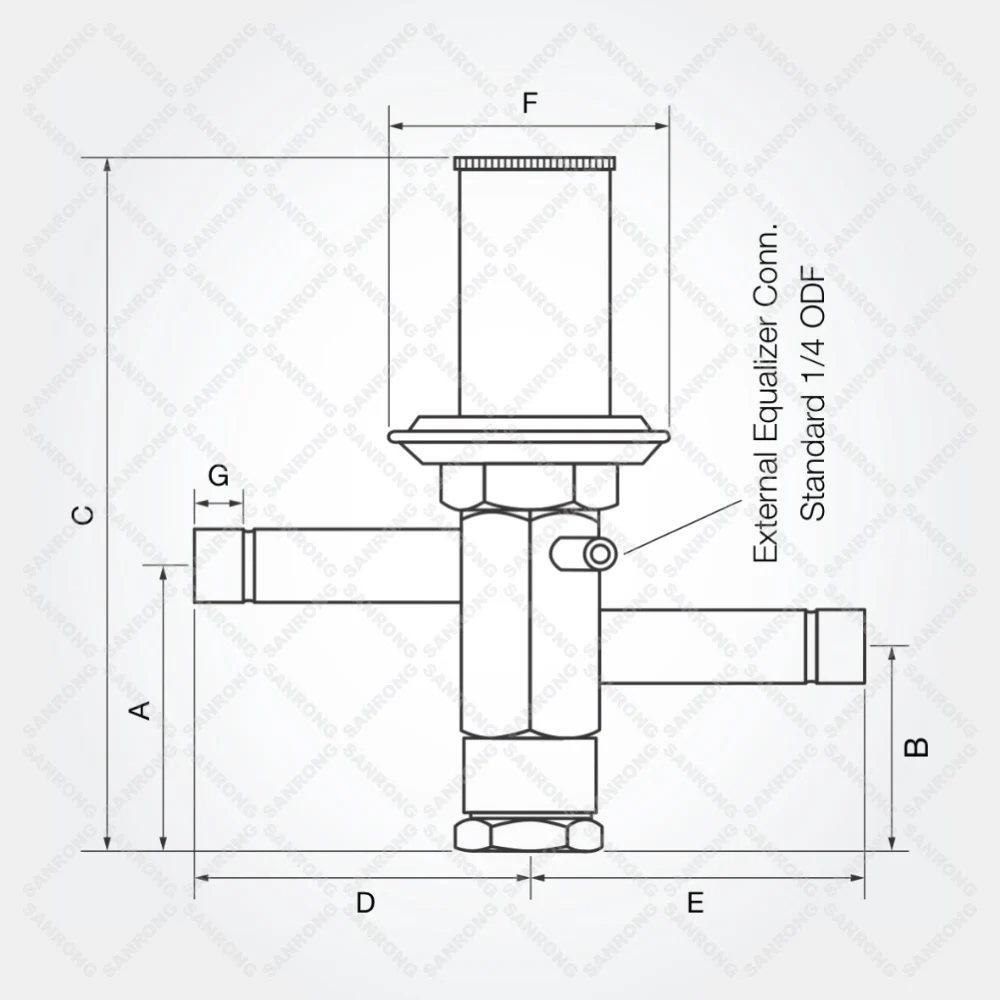

SPECIFICATIONS



Sanrong ModelSporlan ModelConn. Size (inches)Port Size (inches)Dimensions (inches)
ABCDEFG
ADRE-2ADRSE-21/2 ODF1/42.51.946.441.371.372.750.37
ADRE-3ADRPE-35/8 ODF3/82.812.066.941.811.752.750.5
ADRE-6ADRHE-67/8 ODF3/42.881.887.064.624.622.750.75



 If you need more details about this product, please feel free to contact us.
