Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Sanrong
  • Model Number: SRA DCR STAS ADKS 487 9611 14413 19217
  • Type: Filter Drier
  • Application: Refrigeration Parts
  • Certification: UL
  • Max. Working Pressure: 4.5MPa / 650psig
  • Min. Burst Pressure: 22.4MPa / 3250psig
  • Max. Working Temp.: 130°C

Packaging & Delivery

Packaging Details 4pcs/carton
Delivery Time 10-25days

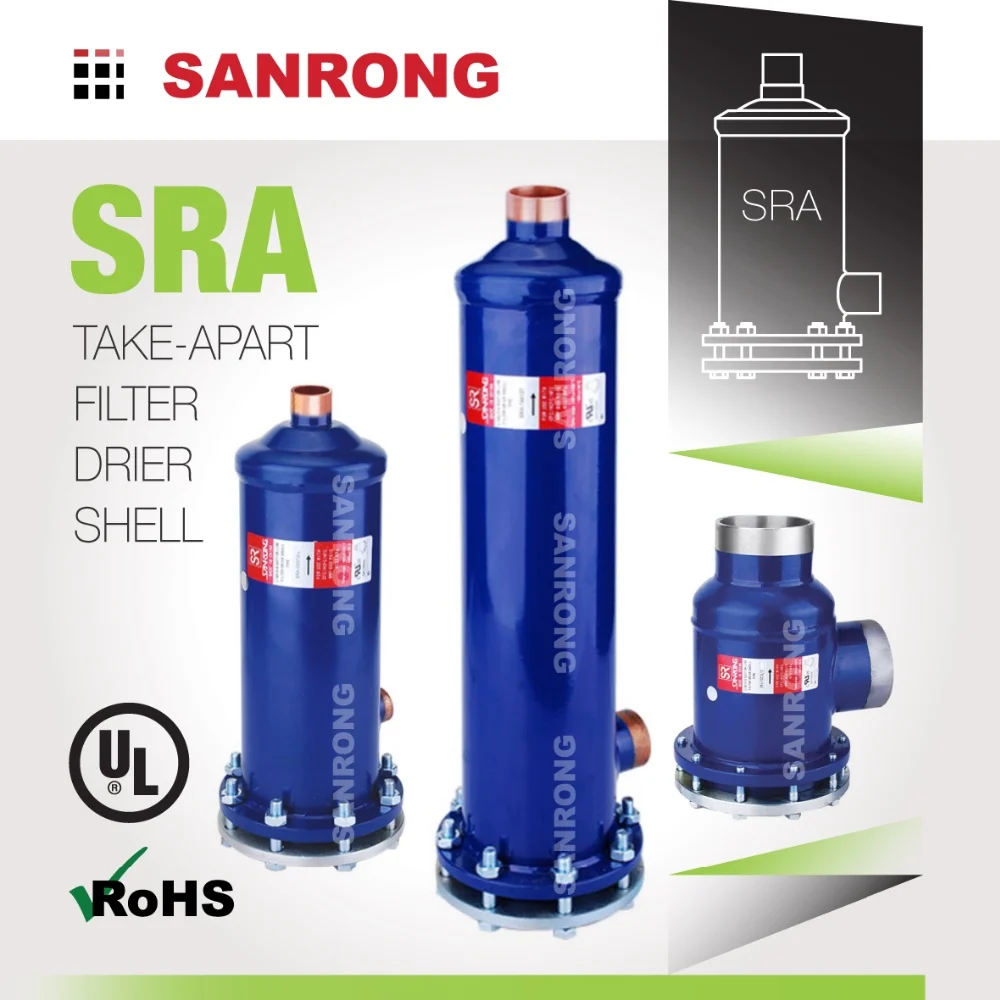

Sanrong SRA Take-Apart Filter Drier Shell with Liquid Line & Suction Line Replaceable Core

designed for commercial refrigeration & air conditioning systems with CFC, HCFC, and HFC refrigerants

PRODUCT DESCRIOTION

The SRA is a replacable core filter drier shell for use in large commercial air conditioning and refrigeration systems. The internal assembly allows the use of all kinds of Sanrong’s replacable cores depending on the system requirements or application.

FEATURES
  • Compatible to R22, R134a, R410A, R407C, etc.

  • High moisture absorption, acid removal and filtering capacity

  • Power paint exterior coating surpasses 500-hour ASTM neutral salt spray test to resist corrosion

  • Slotted cover and unique internal hardware for hassle-free installation

  • Sturdy steel shells for long service life

  • Carbon finer reinforced PTFE gasket

  • Solid copper full-flow connections for low pressure drop

  • Optional 1/4” NPT pressure tapping

  • Max. working pressure of 4.5MPa / 650psig

  • UL, RoHS approved

SPECIFICATIONS


  ModelsConn. Size  (inches)No. of Cores

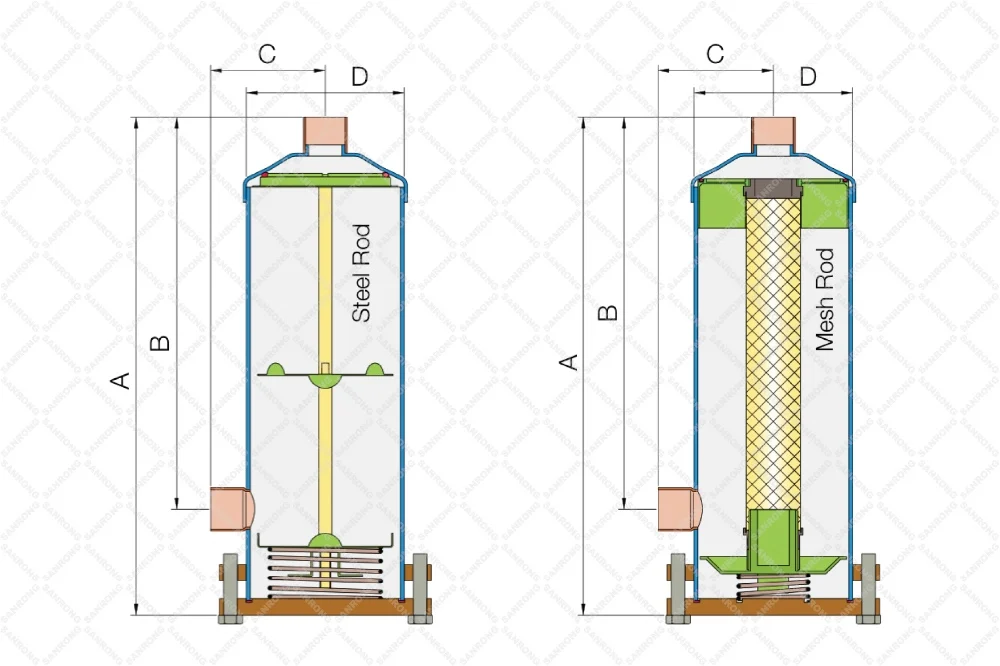

Dimensions

(inches)

Liquid Flow Capacity

(tons @ 1psi ΔP)

Qty x SizeABCDR22R134aR404AR407C
  SRA-4855/8 ODF 1 x 48in³8.825.413.154.4921211521
  SRA-4877/8 ODF 8.985.573.3141382739
  SRA-4891 1/8 ODF 8.945.533.2758533856
  SRA-48111 3/8 ODF 9.195.793.5281755378
  SRA-48131 5/8 ODF 9.215.813.5489815885
  SRA-48172 1/8 ODF 9.416.123.50101936697
  SRA-48212 5/8 ODF 9.535.654.211059768101
  SRA-48253 1/8 ODF 10.005.854.2111911077114
  SRA-9677/8 ODF 2x48in³14.6911.283.3145422743
  SRA-9691 1/8 ODF 14.6511.243.2771654268
  SRA-96111 3/8 ODF 14.9011.503.5287805483
  SRA-96131 5/8 ODF 14.9211.523.54100925895
  SRA-96172 1/8 ODF 15.1211.713.501049668100
  SRA-96212 5/8 ODF 15.2411.184.2110910171105
  SRA-96253 1/8 ODF 15.3511.204.2112511681120
  SRA-14491 1/8 ODF 3x48in³20.2816.873.2772664769
  SRA-144111 3/8 ODF 20.5317.133.52100926596
  SRA-144131 5/8 ODF 20.5517.153.54101936697
  SRA-144172 1/8 ODF 20.6717.383.5012011078115
  SRA-192111 3/8 ODF 4x48in³26.4423.033.52102946798
  SRA-192131 5/8 ODF 26.4623.053.5411310374108
  SRA-192172 1/8 ODF 26.5723.293.5012311380117
  SRA-192212 5/8 ODF 26.8523.444.2113112185126
  SRA-200344 1/4 ODF 2x100in³17.9512.645.28614913898146
  SRA-300131 5/8 ODF 3x100in³23.9819.254.3011010273108
  SRA-300172 1/8 ODF 24.1319.414.50160148107157
  SRA-300212 5/8 ODF 24.5719.884.97168155111165
  SRA-300253 1/8 ODF 24.5719.884.97182168120178
  SRA-300344 1/4 ODF 24.2518.945.28198183131194
  SRA-400172 1/8 ODF 4x100in³31.8127.094.50170157114167
  SRA-400212 5/8 ODF 32.2427.524.97180166120177



 If you need more details about this product, please feel free to contact us.
